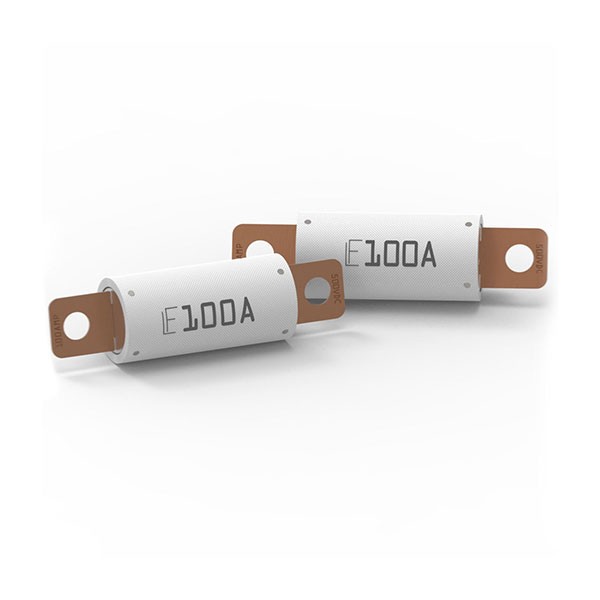

EV20 fuse is designed
for protection of high-current / high-voltage circuits in electric and hybrid
electric vehicles employing an industry-standard footprint. |
|
|
The EV20 fuse provides time-delay characteristics
with “Diffusion Pill Technology. |
|
|
|
|
|
EV20 퓨즈는산업표준설치공간을사용하는전기및하이브리드전기자동차에서고전압/고전압회로를보호하기위해설계되었다. |
|
|
EV20 퓨즈는 "Diffusion Pill Technology"로시간지연특성을제공한다. |
|
|
|
|
|
|
|
|
Features |
|
|
|
|
|
■
Interrupting Rating: 16kA @ 500VDC |
|
|
■
Voltage Rating: 500VDC |
|
|
■
Current ratings 60 – 125 A |
|
|
■ M6
bolt-down terminals |
|
|
■ 20
mm diam. body |
|
|
|
|
|
Applications |
|
|
|
|
|
■
Hybrid electric vehicles |
|
|
■
Battery electric vehicles |
|
|
|
|
|
|
|
|
특징 |
|
|
|
|
|
■중단등급: 16kA @ 500VDC |
|
|
■전압정격: 500VDC |
|
|
■현재시청률 60 – 125 A |
|
|
■ M6
볼트다운단자 |
|
|
■직경 20mm. 몸통하다 |
|
|
|
|
|
응용프로그램 |
|
|
|
|
|
■하이브리드전기자동차 |
|
|
■배터리전기자동차 |
