5KP-HR > TVS Diodes

The 5KP-HR High Reliability Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Features:

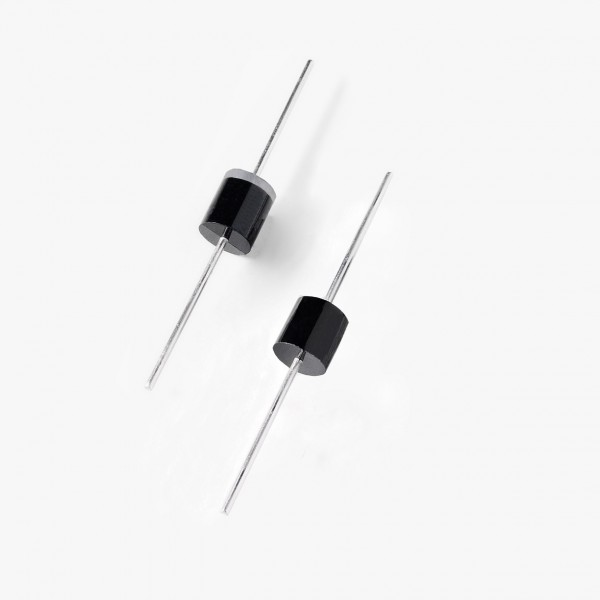

• Glass passivated chip junction in P600 package
• 5000W peak pulse capability at 10/1000μs waveform, repetition rate (duty cycles):0.01%
• Fast response time: typically less than 1.0ps from 0 Volts to BV min
• Excellent clamping capability
• Typical failure mode is short from over-specified voltage or current
• Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
• IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact)
• ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)
• EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)
• Low incremental surge resistance
• Typical IR less than 2μA when VBR min>12V
• High temperature soldering guaranteed: 260°C /10 seconds / 0.375”, (9.5mm) lead length, 5lbs., (2.3kg) tension
• VBR @ TJ= VBR@25°C x (1+αT x (TJ - 25)) (αT: Temperature Coefficient, typical value is 0.1%)
• Plastic package has underwriters laboratory flammability classification 94V-O
• Lead-free matte tin plated package
• Halogen free and RoHS compliant

Applications:

TVS devices are ideal for the protection of I/O interfaces, V_CC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications.

Catalog #	VR (Vso)	Watts (W)	IPP 10x1000μs (A)	MIN VBR@IT (V)	MAX VBR@IT (V)	Vc (V)	IT (mA)	Ir@Vso (μA)	Max Temp (deg C)	Stock	Samples	Compare
5KP100A-HR	100.0	5000	31.5	110.00	123.00	162.0	5	2	175	Check	Order
5KP100CA-HR	100.0	5000	31.5	110.00	123.00	162.0	5	2	175	Check	Order
5KP10A-HR	10.0	5000	300.0	11.10	12.30	17.0	5	15	175	Check	Order
5KP10CA-HR	10.0	5000	300.0	11.10	12.30	17.0	5	30	175	Check	Order
5KP110A-HR	110.0	5000	28.8	122.00	135.00	177.0	5	2	175	Check	Order
5KP110CA-HR	110.0	5000	28.8	122.00	135.00	177.0	5	2	175	Check	Order
5KP11A-HR	11.0	5000	280.2	12.20	13.50	18.2	5	2	175	Check	Order
5KP11CA-HR	11.0	5000	280.2	12.20	13.50	18.2	5	2	175	Check	Order
5KP120A-HR	120.0	5000	26.4	133.00	147.00	193.0	5	2	175	Check	Order
5KP120CA-HR	120.0	5000	26.4	133.00	147.00	193.0	5	2	175	Check	Order
5KP12A-HR	12.0	5000	256.3	13.30	14.70	19.9	5	2	175	Check	Order
5KP12CA-HR	12.0	5000	256.3	13.30	14.70	19.9	5	2	175	Check	Order
5KP130A-HR	130.0	5000	24.4	144.00	159.00	209.0	5	2	175	Check	Order
5KP130CA-HR	130.0	5000	24.4	144.00	159.00	209.0	5	2	175	Check	Order
5KP13A-HR	13.0	5000	237.2	14.40	15.90	21.5	5	2	175	Check	Order
5KP13CA-HR	13.0	5000	237.2	14.40	15.90	21.5	5	2	175	Check	Order
5KP14A-HR	14.0	5000	219.8	15.60	17.20	23.2	5	2	175	Check	Order
5KP14CA-HR	14.0	5000	219.8	15.60	17.20	23.2	5	2	175	Check	Order
5KP150A-HR	150.0	5000	21.0	167.00	185.00	243.0	5	2	175	Check	Order
5KP150CA-HR	150.0	5000	21.0	167.00	185.00	243.0	5	2	175	Check	Order
5KP15A-HR	15.0	5000	209.0	16.70	18.50	24.4	5	2	175	Check	Order
5KP15CA-HR	15.0	5000	209.0	16.70	18.50	24.4	5	2	175	Check	Order
5KP160A-HR	160.0	5000	19.7	178.00	197.00	259.0	5	2	175	Check	Order
5KP160CA-HR	160.0	5000	19.7	178.00	197.00	259.0	5	2	175	Check	Order
5KP16A-HR	16.0	5000	196.2	17.80	19.70	26.0	5	2	175	Check	Order
5KP16CA-HR	16.0	5000	196.2	17.80	19.70	26.0	5	2	175	Check	Order
5KP170A-HR	170.0	5000	18.5	189.00	209.00	275.0	5	2	175	Check	Order
5KP170CA-HR	170.0	5000	18.5	189.00	209.00	275.0	5	2	175	Check	Order
5KP17A-HR	17.0	5000	184.8	18.90	20.90	27.6	5	2	175	Check	Order
5KP17CA-HR	17.0	5000	184.8	18.90	20.90	27.6	5	2	175	Check	Order
5KP180A-HR	180.0	5000	17.5	200.00	221.00	292.0	5	2	175	Check	Order
5KP180CA-HR	180.0	5000	17.5	200.00	221.00	292.0	5	2	175	Check	Order
5KP18A-HR	18.0	5000	174.7	20.00	22.10	29.2	5	2	175	Check	Order
5KP18CA-HR	18.0	5000	174.7	20.00	22.10	29.2	5	2	175	Check	Order
5KP190A-HR	190.0	5000	16.5	211.00	233.00	310.0	5	2	175	Check	Order
5KP190CA-HR	190.0	5000	16.5	211.00	233.00	310.0	5	2	175	Check	Order
5KP200A-HR	200.0	5000	15.5	222.00	246.00	329.2	5	2	175	Check	Order
5KP200CA-HR	200.0	5000	15.5	222.00	246.00	329.2	5	2	175	Check	Order
5KP20A-HR	20.0	5000	157.4	22.20	24.50	32.4	5	2	175	Check	Order
5KP20CA-HR	20.0	5000	157.4	22.20	24.50	32.4	5	2	175	Check	Order
5KP210A-HR	210.0	5000	14.6	233.00	258.00	349.5	5	2	175	Check	Order
5KP210CA-HR	210.0	5000	14.6	233.00	258.00	349.5	5	2	175	Check	Order
5KP220A-HR	220.0	5000	13.7	244.00	270.00	371.1	5	2	175	Check	Order
5KP220CA-HR	220.0	5000	13.7	244.00	270.00	371.1	5	2	175	Check	Order
5KP22A-HR	22.0	5000	143.7	24.00	26.90	35.5	5	2	175	Check	Order
5KP22CA-HR	22.0	5000	143.7	24.00	26.90	35.5	5	2	175	Check	Order
5KP24A-HR	24.0	5000	131.1	26.70	29.50	38.9	5	2	175	Check	Order
5KP24CA-HR	24.0	5000	131.1	26.70	29.50	38.9	5	2	175	Check	Order
5KP26A-HR	26.0	5000	121.1	28.90	31.90	42.1	5	2	175	Check	Order
5KP26CA-HR	26.0	5000	121.1	28.90	31.90	42.1	5	2	175	Check	Order
5KP28A-HR	28.0	5000	112.3	31.10	34.40	45.4	5	2	175	Check	Order
5KP28CA-HR	28.0	5000	112.3	31.10	34.40	45.4	5	2	175	Check	Order
5KP30A-HR	30.0	5000	105.4	33.30	36.80	48.4	5	2	175	Check	Order
5KP30CA-HR	30.0	5000	105.4	33.30	36.80	48.4	5	2	175	Check	Order
5KP33A-HR	33.0	5000	95.7	36.70	40.60	53.3	5	2	175	Check	Order
5KP33CA-HR	33.0	5000	95.7	36.70	40.60	53.3	5	2	175	Check	Order
5KP36A-HR	36.0	5000	87.8	40.00	44.20	58.1	5	2	175	Check	Order
5KP36A-HRA	36.0	5000	87.8	40.00	44.20	58.1	5	2	175	Check	Order
5KP36CA-HR	36.0	5000	87.8	40.00	44.20	58.1	5	2	175	Check	Order
5KP36CA-HRA	36.0	5000	87.8	40.00	44.20	58.1	5	2	175	Check	Order
5KP40A-HR	40.0	5000	79.1	44.40	49.10	64.5	5	2	175	Check	Order
5KP40CA-HR	40.0	5000	79.1	44.40	49.10	64.5	5	2	175	Check	Order
5KP43A-HR	43.0	5000	73.5	47.80	52.80	69.4	5	2	175	Check	Order
5KP43CA-HR	43.0	5000	73.5	47.80	52.80	69.4	5	2	175	Check	Order
5KP45A-HR	45.0	5000	70.2	50.00	55.30	72.7	5	2	175	Check	Order
5KP45CA-HR	45.0	5000	70.2	50.00	55.30	72.7	5	2	175	Check	Order
5KP48A-HR	48.0	5000	65.9	53.30	58.90	77.4	5	2	175	Check	Order
5KP48A-HRA	48.0	5000	65.9	53.30	58.90	77.4	5	2	175	Check	Order
5KP48CA-HR	48.0	5000	65.9	53.30	58.90	77.4	5	2	175	Check	Order
5KP48CA-HRA	48.0	5000	65.9	53.30	58.90	77.4	5	2	175	Check	Order
5KP5.0A-HR	5.0	5000	554.3	6.40	7.00	9.2	50	5000	175	Check	Order
5KP5.0CA-HR	5.0	5000	554.3	6.40	7.00	9.2	50	10000	175	Check	Order
5KP51A-HR	51.0	5000	61.9	56.70	62.70	82.4	5	2	175	Check	Order
5KP51CA-HR	51.0	5000	61.9	56.70	62.70	82.4	5	2	175	Check	Order
5KP54A-HR	54.0	5000	58.6	60.00	66.30	87.1	5	2	175	Check	Order
5KP54CA-HR	54.0	5000	58.6	60.00	66.30	87.1	5	2	175	Check	Order
5KP58A-HR	58.0	5000	54.5	64.40	71.20	93.6	5	2	175	Check
