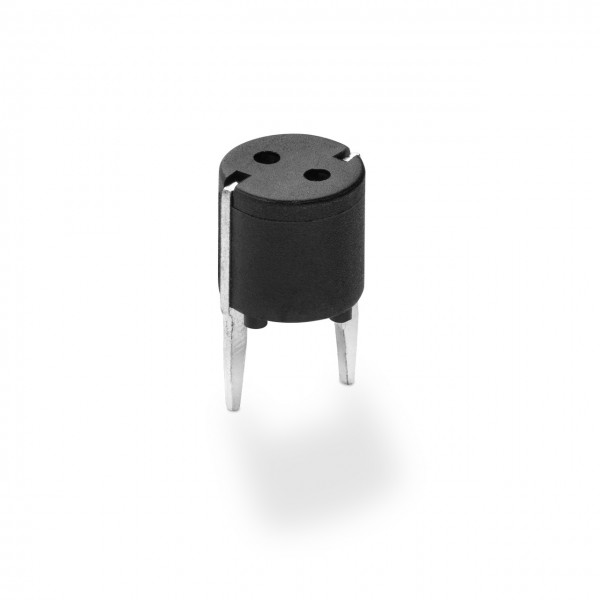

Thru-hole circuit board mount blocks designed for Littelfuse MICROTM/ TR3
type and other fuse series with .025” diameter leads rated to 5 amps.
Features & Benefits:
- Rated at 5A / 1.6W to 125 volts.
- Mounting Method - PC Board Thru-Hole @ 5.08 hole spacing
- Mount Color & Direction: Black Vertical
- Molded Part Specs: Black ThermoplasticUL 94V0
- Metal Parts and Terminals: Copper Alloy with Tin Plating
- Unit Weight: 0.42g
| Catalog # | Amps (A) | Fuse Type | Indicating | Voltage Rating Max | Current Rating (Max) | Mounting | Partner ECAD Models | Stock | Samples |
|---|
 |  | | | | | | | | |
| 55600000001 | 5 | MICRO | No | 125 | 5 | Panel Mount |  | Check | Order |
